Work
These are not screenshots and not videos. Each demo below is the actual widget source that would run on a station, loaded by a minimal AMD loader, talking to a simulated station that resolves ORDs and pushes changing values. Interact with them.
What is real and what is not. The widget code, the config files, the ORD strings and the rendering are exactly what a station would run. The station is a simulator: point values are generated by a small physical model in your browser rather than read from real plant, because publishing a live connection to somebody's building would be a poor idea. Nothing here is a client site.

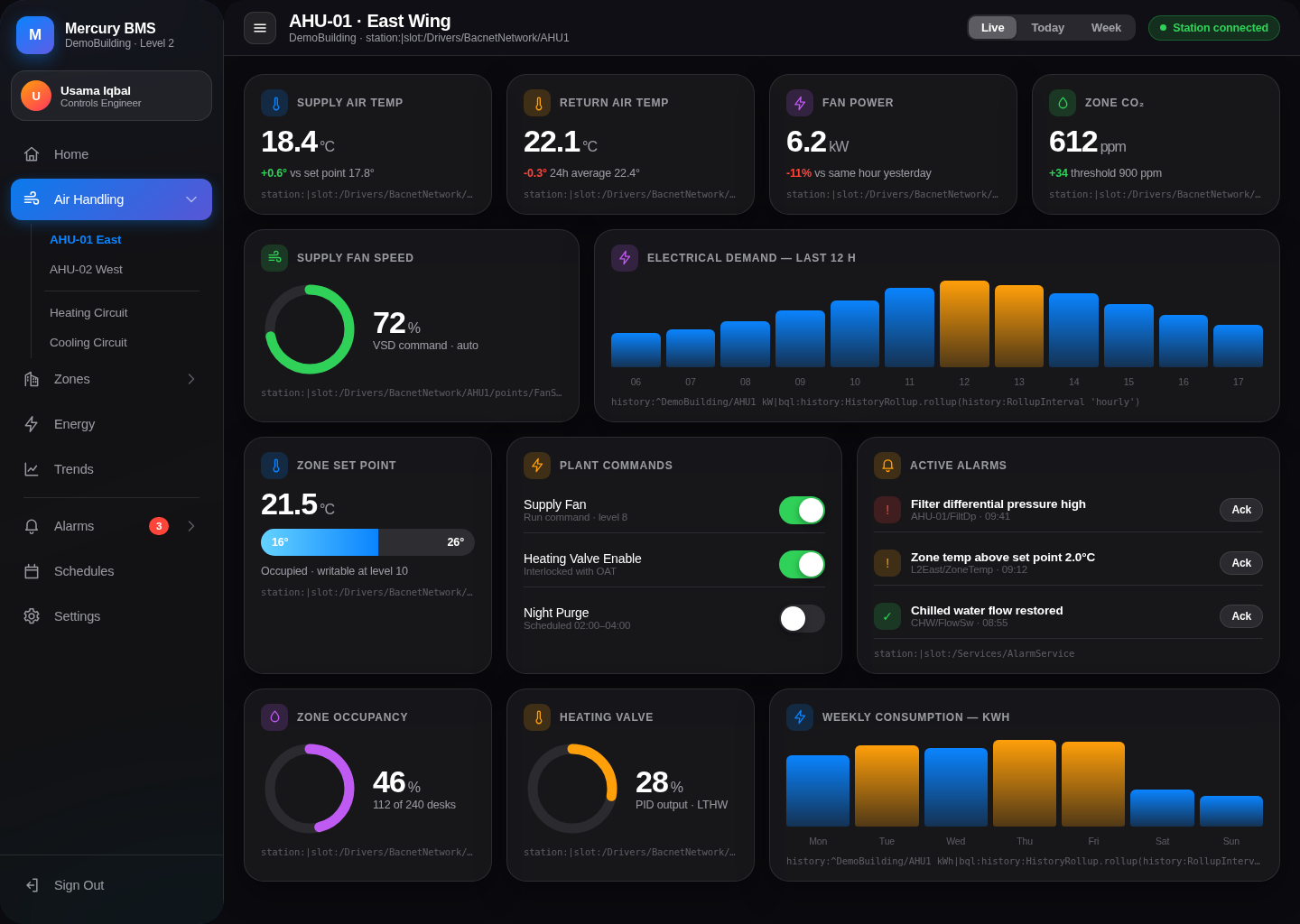

Supply and return air temperature, fan power, zone CO₂, a fan-speed dial, a demand chart, a writable zone set point, plant commands and the alarm queue. Twelve tiles, each bound to its own station ORD — and the values are moving because a simulated station is pushing them. Move the set point and the plant responds.
The same discipline at building level, light theme: KPI tiles for demand, chilled water and LTHW, plant monitoring, and an equipment table carrying fault and warning states. Toggle the theme — every component re-points from the token layer without one of them being touched.

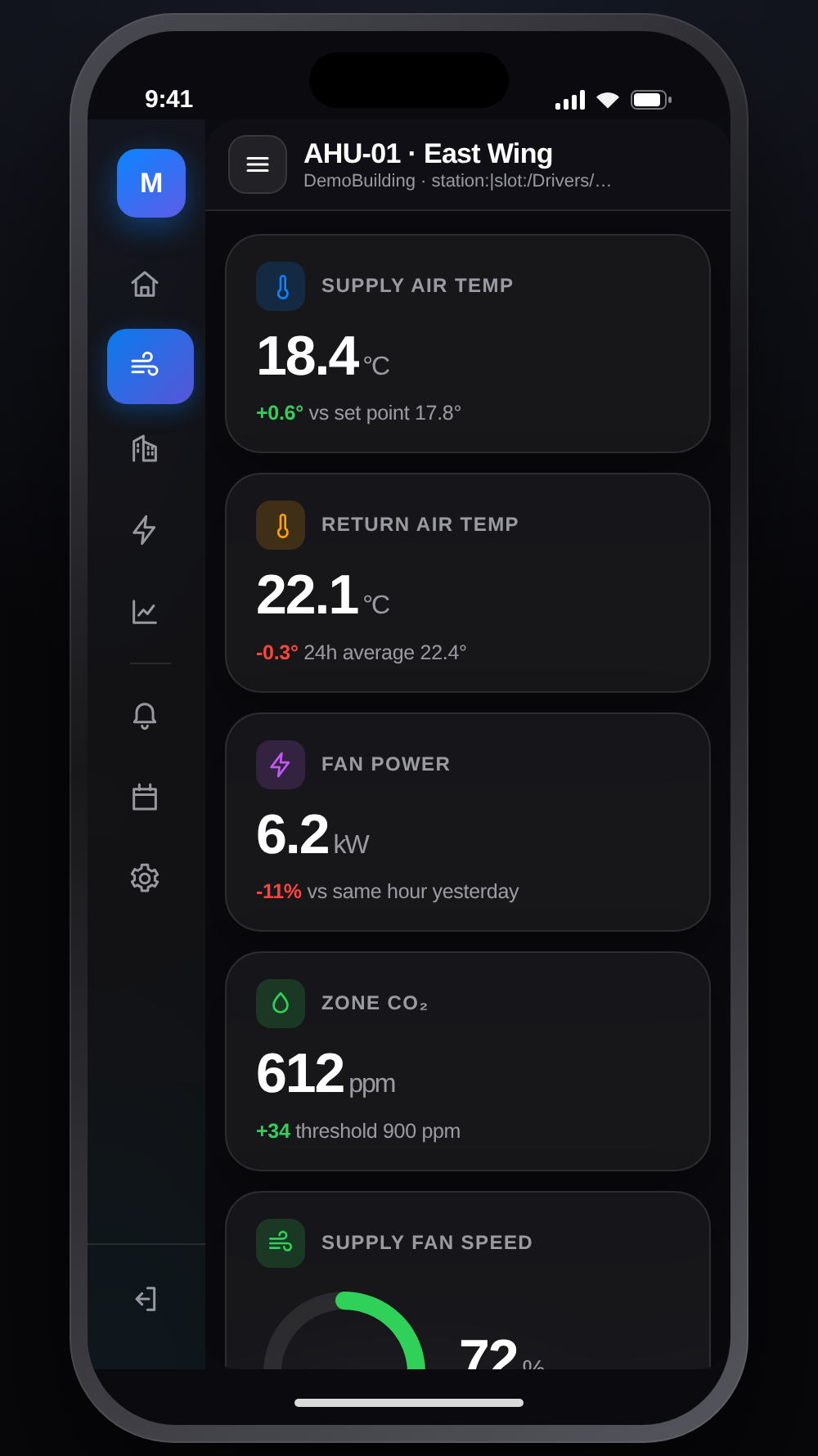

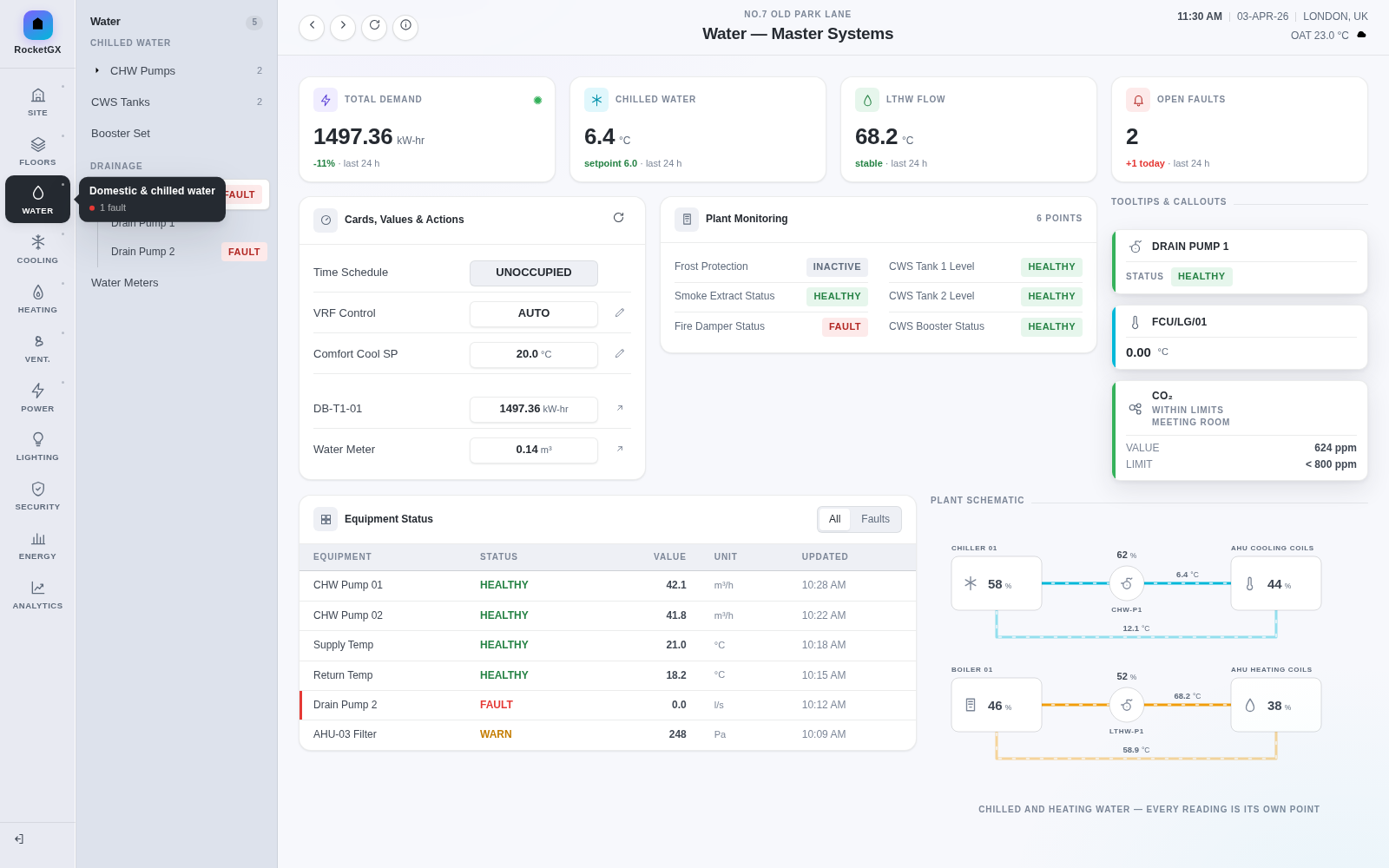

Site, building and floor navigation. Collapse it and it becomes an icon rail with flyout menus, so a tight PX viewport or a phone still gives the graphics the full width. Click through the sections.
Under the hood
The widget's own source runs here unmodified. If it needed rewriting to run in a page like this, running here would prove nothing.
Niagara's HTML5 profile serves a PX view by creating a DOM element per
WebWidget and handing it to the AMD module named by the widget's
js ORD. The demo does exactly that, with the widget's
rc/*.js and rc/*.css untouched.
A stand-in for baja resolves station:|slot:/… ORDs against
an in-browser model of an air handling unit — supply and return temperature, fan
speed, valve position, zone CO₂ — integrated on a tick, so values move the way
plant moves rather than jittering randomly.
The simulator implements the subscriber contract the widgets use, so a changing point pushes into the widget through the same path a station would use. Writes work too: move a set point and the model responds.
Stills
For anyone who would rather not run JavaScript, and for print.
Next step
You will get a written scope and a fixed price against it. If the honest answer is that you do not need us, you will get that instead.
